Malossi Hi Rev CDI
Hi Rev CDI - STOCK STYLE - NOT PVL - G-FORCE POWERSPORTS

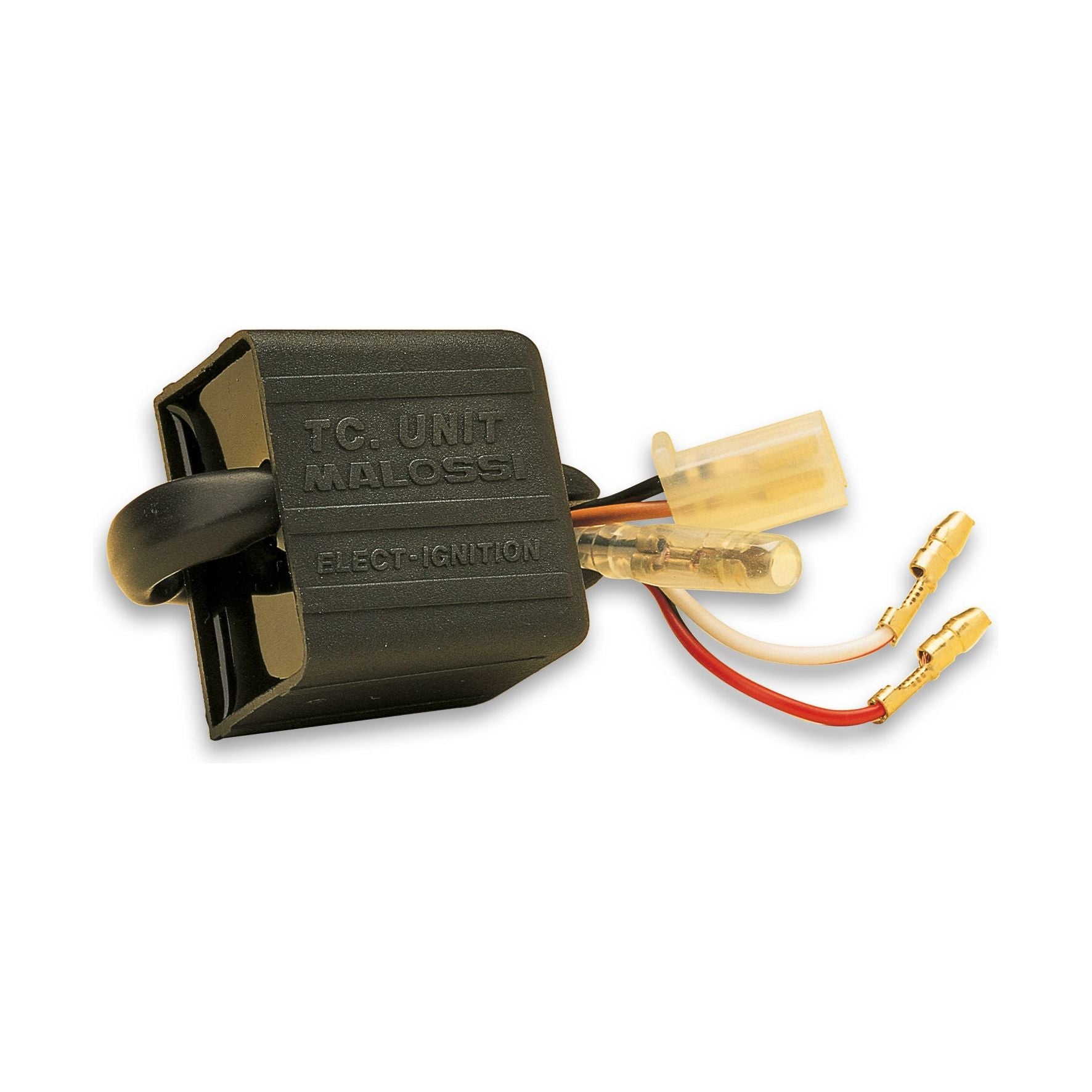

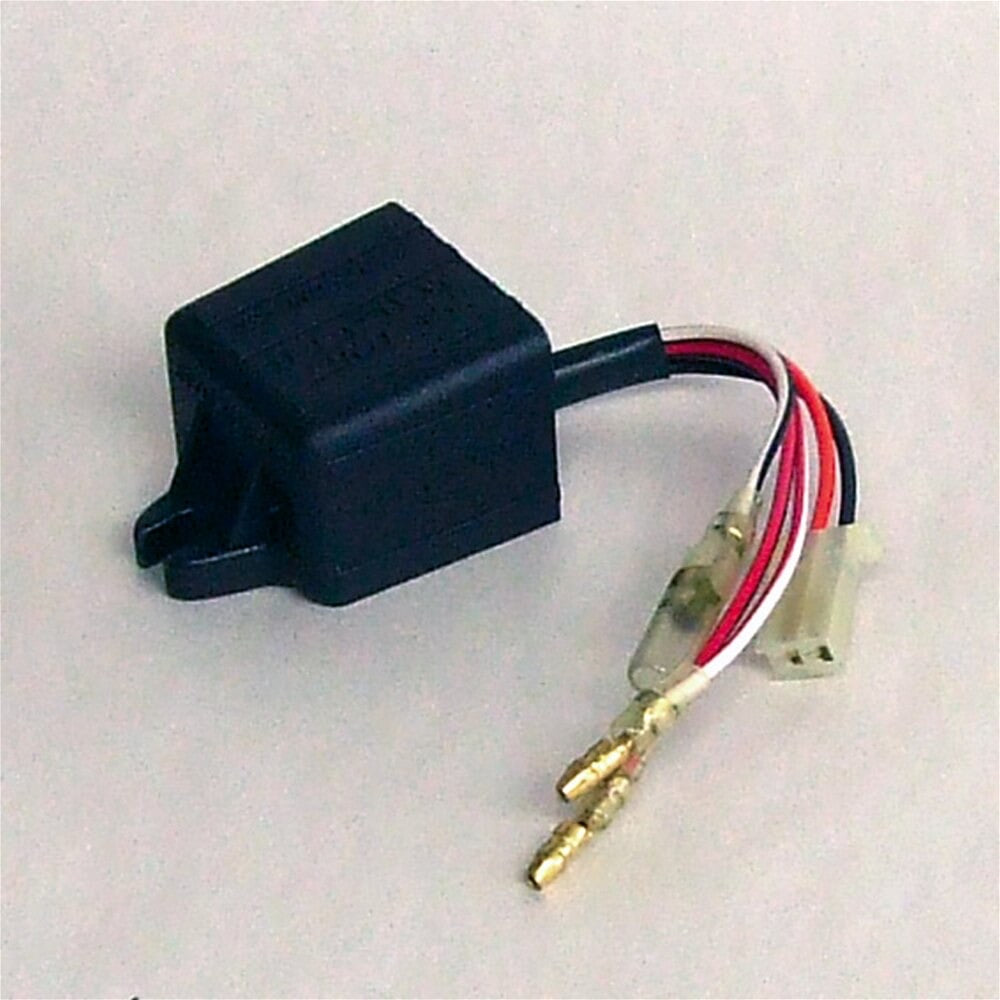

Malossi Hi Rev CDI

558133

Regular price $72.29
/
Shipping calculated at checkout.

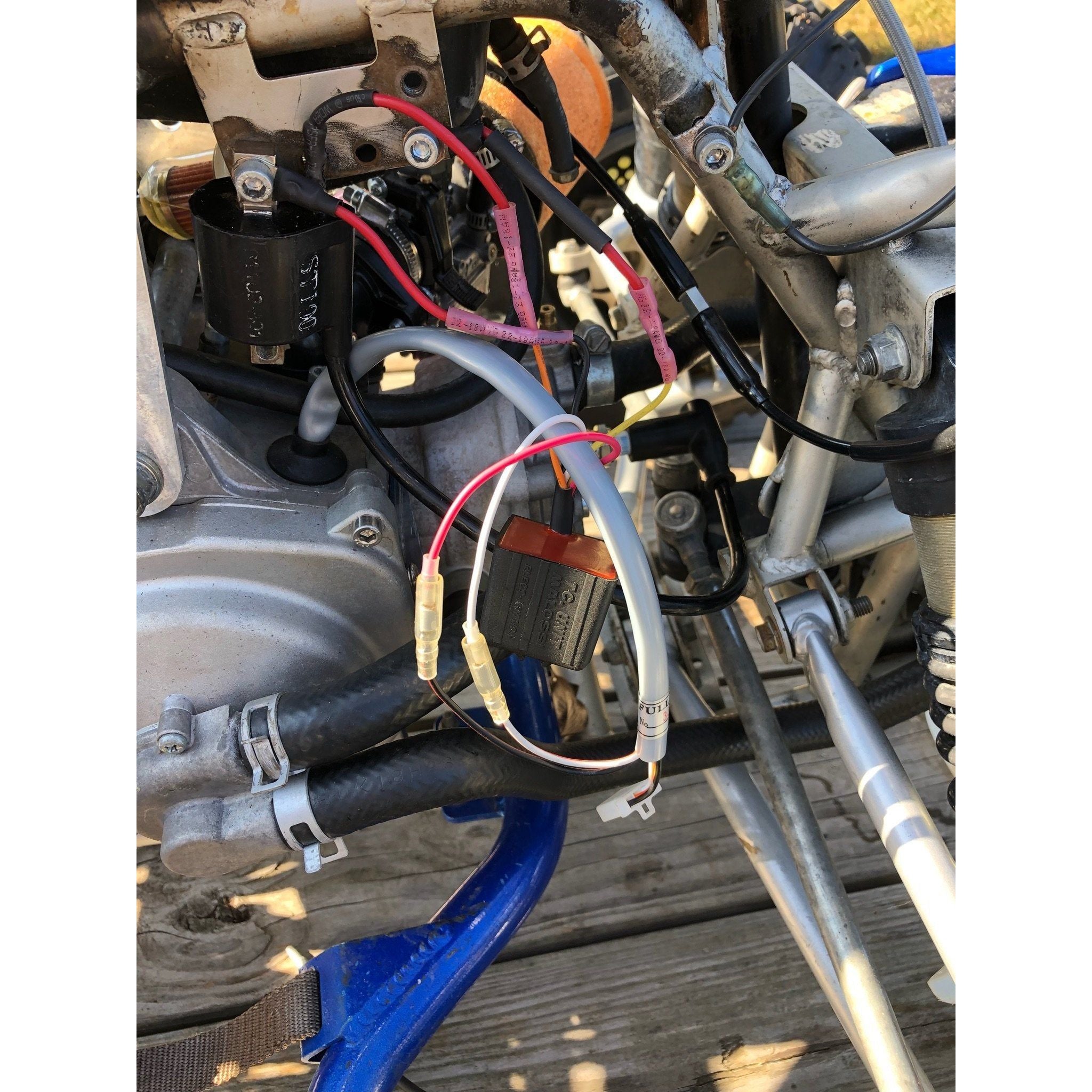

WIRING

  • Yellow = Hot Lead on AFTERMARKET KILL TETHER
  • Red = Stator Black
  • White = Stator White



ELECTRONIC COILS
The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology.
Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were designed to allow also a very easy assembling, since they are interchangeable with the original boxes. They are compact and ergonomic, so they can be connected perfectly to the original connectors.
Furthermore, these coils allow the elimination of the rpm limiter installed on some standard power boxes, enabling in this way the full exploitation of the engine's power and torque even at the highest regimes, up to 20.000 rpm. These electronic coils are based on capacitive discharges, therefore they allow maximum limitation of circuit transients during voltage discharge, while obtaining a virtually perfect peak voltage on the spark plug (35.000 - 50.000 volts depending on the engine regime); moreover they grant extremely high discharge voltages and currents with surprising steadiness with respect to engine rpm variation.



Technical features

  • Feeding of the electronic coil: original
  • Maximum number of revolutions/minute: 20.000
  • Voltage discharge: 35.000 – 50.000 volt
  • Advance: fixed

WIRING

  • Yellow = Hot Lead on AFTERMARKET KILL TETHER
  • Red = Stator Black
  • White = Stator White
