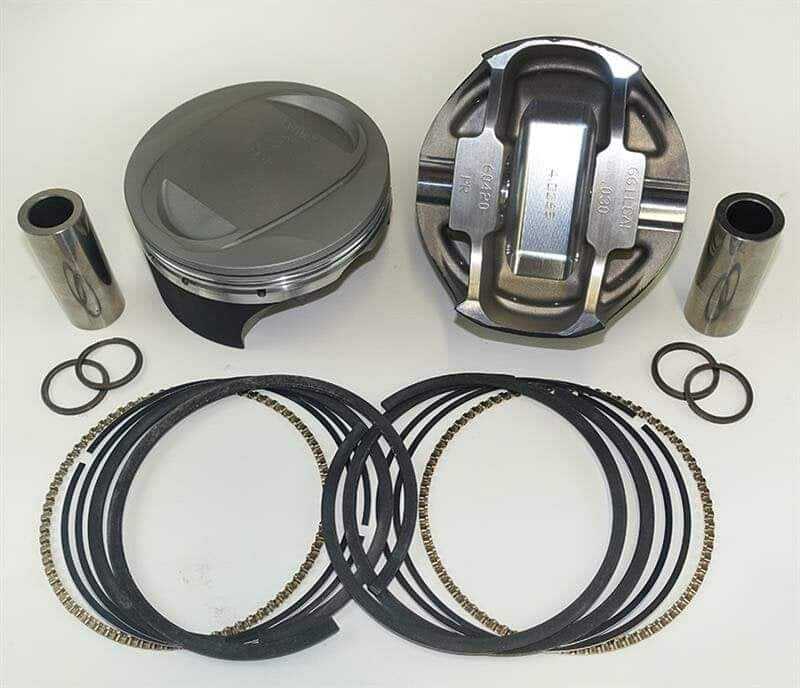

PISTON SUPER DUTY BIG BORE TC 96/103 TO 110 10:1 STD
SKU: 824-01815
$424.95
By KB PISTONS
Description
- Gen-2 M8,4.25" Big Bore Cylinders come Powder Coated Black with Machined Fins for that OEM look.
- Turn your 114 or 117 Ci. M8 motors (inc. Center Cooled motors) into a 128" Big Bore
- Turn your 107Ci M8 motor into a 124" Big Bore.
- Compatible with 4.25" Pistons
- No crank case machining required
- Front and rear cylinders are marked for location
- Sold as a pair
- Gaskets Purchased Separately
- No modifications needed when running Cometic Head and Base gasket kit (see P/Ns below)
- Anodized top ring groove and crown
- Line2Line Abradable skirt coating applied to .003" total thickness for a ZERO initial fit to allow coating to hone in for a tight quiet running clearance
- Round wire locks
- Premium Hastings 1.2mm 1.2mm 3.0mm Steel Nitride top ring with a Ductile Napier second ring
- Forced wrist pin oiling
- M8 version with flat top 1.2cc with compression height 1.083", valve pockets sized to accommodate 1mm oversize valves
- All Rings, Wrist Pins and Wrist Pin Locks included.
- Pistons sold as a PAIR.
