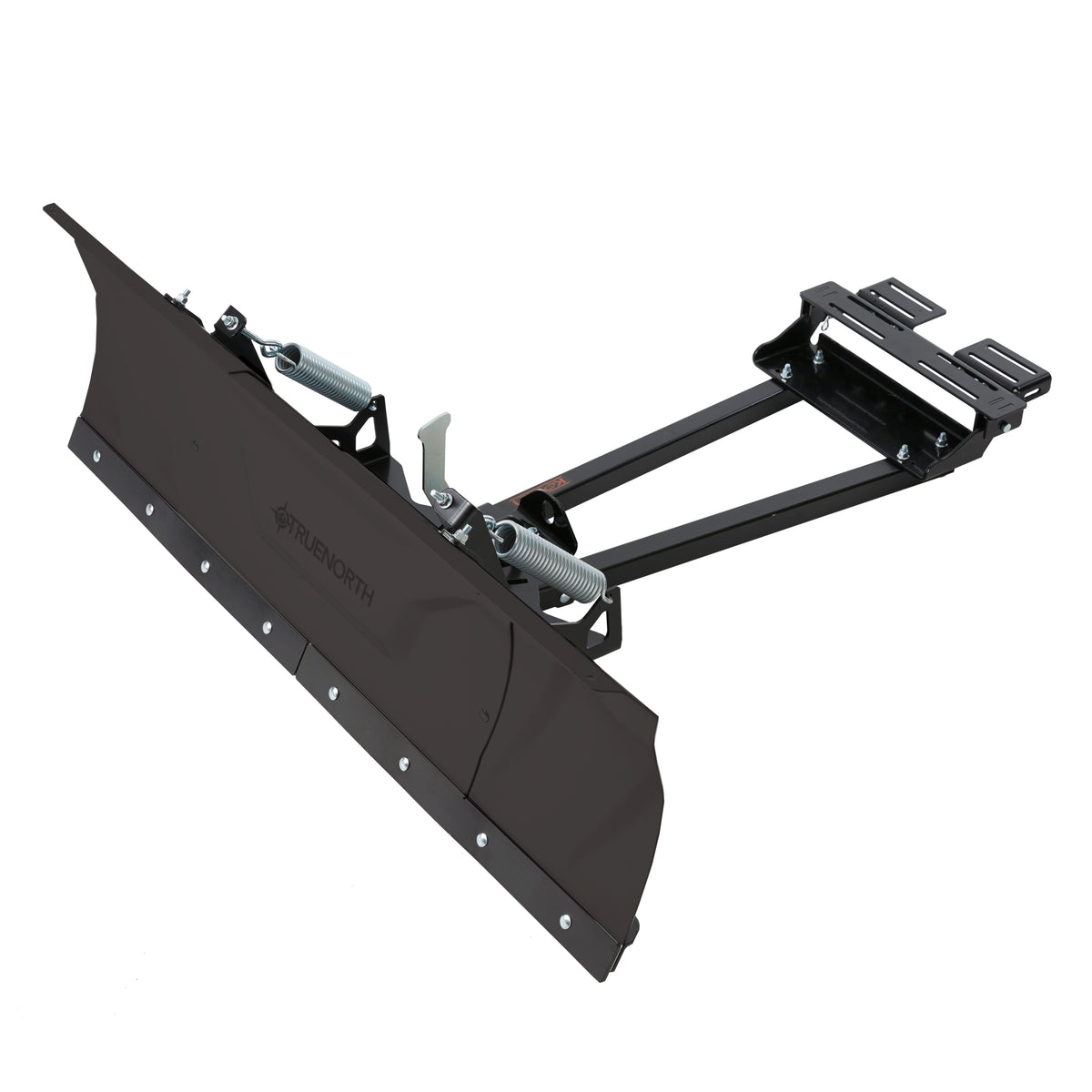

SWITCHBLADE PLOW ATV 48"-60" ADJUSTABLE STEEL BLADE

TrueNorth Switchblade™ Snow Plow System is a complete Plow-in-a-Box, minus a Winch. Robust square tube steel chassis with strategically placed reinforcements.

ATV

• Complete Plow-in-a-Box, minus Winch
• Stamped steel blade technology adjusts to either 48” or 60” width
• Robust square tube steel chassis with strategically placed reinforcements 5-position blade angle
• Easy to assemble and install under-body mount
• Requires winch (sold separately)
• Assembles in under 1 hour
• At maximum blade angle position, the snow cutting widths are 43.5” and 54.3” for the 48” and 60” blade widths respectively
• Included Mounting Hardware: (1) ATV Mount Weldment, (1) Mount LH Bracket, (1) Mount RH Bracket, (2) Square U-Bolt, Zinc Plated, M8-1.25 x 50 x 110, (4) Round U-Bolt, Zinc Plated, M8-1.25 x 40 x 96, (16) Flange Locknut, Zinc Plated, M8-1.25, (4) Flat Washer, Zinc Plated, M8, (4) Spacer, Steel 1.0" Dia. x 0.5" Height, (2) Hex Flange Bolt, Zinc Plated, M8-1.25 x 65mm LG, (1) Plate, Steel Strap
• This product is designed to fit most vehicles, however TrueNorth does not ensure vehicle fitment for all vehicles. We reserve the right to make modifications / improvements to our products at any time. Pictures are a representation of the product you will be getting but may vary due to product revisions. Always refer to your vehicle’s OEM operator manual to understand warnings and fitment, which takes precedence over TrueNorth product instructions and fitment.
• One year limited warranty

UTV

• Complete Plow-in-a-Box, minus Winch
• Stamped steel blade technology adjusts to either 60” or 72” width
• Robust square tube steel chassis with strategically placed reinforcements 5-position blade angle
• Easy to assemble and install under-body mount
• Requires winch (sold separately)
• Assembles in under 1 hour
• Box fits in the back of your vehicle for easy transport
• At maximum blade angle position, the snow cutting widths are 54.3” and 65.1” for the 60” and 72” blade widths respectively
• Included Mounting Hardware: (1) UTV Mount Weldment, (1) Mount LH Bracket, (1) Mount RH Bracket, (4) Square U-Bolt, Zinc Plated, M8-1.25 x 50 x 110, (4) Round U-Bolt, Zinc Plated, M8-1.25 x 40 x 96, (4) Spacer Plate, (16) Flange Locknut, Zinc Plated, M8-1.25, (4) Hex Flange Bolt, Zinc Plated, M8-1.25 x 30mm LG, (4) Flat Washer, Zinc Plated, M8
• This product is designed to fit most vehicles, however TrueNorth does not ensure vehicle fitment for all vehicles. We reserve the right to make modifications / improvements to our products at any time. Pictures are a representation of the product you will be getting but may vary due to product revisions. Always refer to your vehicle’s OEM operator manual to understand warnings and fitment, which takes precedence over TrueNorth product instructions and fitment.
• One year limited warranty

• Complete Plow-in-a-Box, minus Winch Stamped steel blade technology adjusts to either 48” or 60” width
• Robust square tube steel chassis with strategically placed reinforcements 5-position blade angle
• Easy to assemble and install under-body mount Requires winch (sold separately)
• Assembles in under 1 hour
• At maximum blade angle position, the snow cutting widths are 43.5” and 54.3” for the 48” and 60” blade widths respectively
• Included Mounting Hardware: (1) ATV Mount Weldment, (1) Mount LH Bracket, (1) Mount RH Bracket, (2) Square U-Bolt, Zinc Plated, M8-1.25 x 50 x 110
• (4) Round U-Bolt, Zinc Plated, M8-1.25 x 40 x 96, (16) Flange Locknut, Zinc Plated, M8-1.25, (4) Flat Washer, Zinc Plated, M8, (4) Spacer, Steel 1.0" Dia. x 0.5" Height, (2) Hex Flange Bolt, Zinc Plated, M8-1.25 x 65mm LG, (1) Plate, Steel Strap
