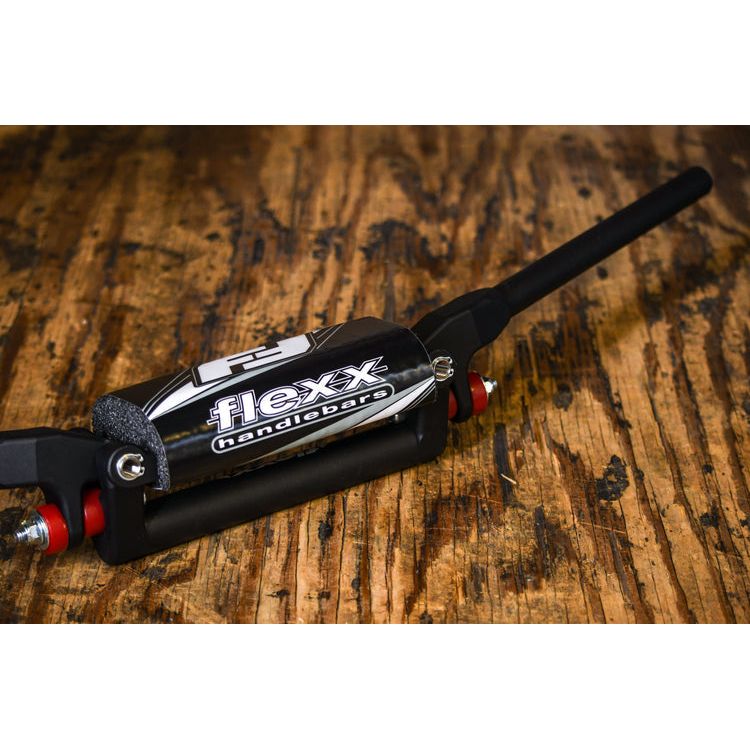

FLEXX HANDLEBARS by FASST
CONTACT US TO VERIFY AVAILABILITY
Description
Flexx Handlebars are tunable suspension for your hands, minimizing numbness and fatigue, allowing you to ride longer and charge harder.
With more wheels on the ground comes more bumps to absorb. A rigid handlebar on an ATV transfers vibration and abuse to the rider’s upper body, making it difficult and fatiguing to consistently hit desired lines through rocks, roots, braking bumps, and other trail chatter. Flexx Handlebars dramatically reduce those impacts and vibration, allowing you to focus on riding instead of hanging on. Flexx Handlebars are assembled with a proprietary bushing in the pivot pin to isolate the handles from metal-to-metal contact. They ship with a variety of elastomers that allow you to further tune the bar to your preferences. This provides you with the highest performing handlebar available, combining less vibration, subdued impacts, and improved ergonomics for a better day riding.
Getting to the races isn’t easy. Don’t let unnecessary hand and arm fatigue get in the way of your results.
-Our Quad Bars are 31 inches wide, while our Moto Bars are 32 inches wide.
-All Quad bends offer 9” of handle room, over an inch more than a traditional bar.
-All Moto bends offer 9.5” of handle room, over 1.5 inches more than a traditional bar.
-We have a new low bar that’s 68mm tall. This means we now have 3 different bar heights: 68mm, 92mm, and 116mm.
-The 92mm bar was previously referred to as the “Quad Low”, it’s now referred to as the “Standard” height. The 68mm tall bar will now be refferred to as the "Quad Low". The 116mm “Quad High” will go unaffected.
-If running a low bar on a TRX or YFZ, a +1 stem is needed for the bar to clear an oversized fuel tank
- Flexx Handlebars are 1 1/8" at the mounting section and 7/8" at the handles.
- On ATV’s the ideal backsweep is usually a 14° or a 15°, pending your height and what kind of riding you’re primarily doing. Most ATV’s come stock with a bar most identical to our 15* Quad High.
- Traditionally taller riders prefer a straighter bar like the 14°. Check out our ATV Bar Bend
Flexx ATV Handlebar Bend Charts
Near the bottom of the page there's a complete cross reference list of OEM offerings. Please email or call us if you don’t see the bend cross reference you are looking for or you need help choosing the correct bend, we're happy to help!
POPULAR BENDS FROM OTHER BRANDS (CROSS REFERENCE)
| Model | (A) Sweep | (C) Width | (D) Height | Comparable Flexx Handlebar |
|---|---|---|---|---|
| CR High | 62mm | 795mm | 95mm | 15° Moto |
| Henry/Reed | 57mm | 800mm | 92mm | 14° Moto |
| ATV Low | 84mm | 813mm | 140mm | 19° Quad High |
| ATV Mid | 76mm | 813mm | 150mm | 19° Quad High |
| ATV High | 100mm | 813mm | 160mm | 19° Quad High |
| Raptor | 87mm | 770mm | 143mm | 19° Quad High |
| Stock YFZ 450 (2007-2020) | 86mm | 784mm | 105mm | 19° Quad |
| Stock TRX (2006-2014) | 90mm | 790mm | 142mm | 19° Quad |
| Stock KFX 450 (2009-2014) | 72mm | 769mm | 96mm | 15° Quad Low |
A. Sweep
Shown in degrees/millimetersB. Mid Section
As of September 1, 2021 all bends have a 7.25 wide center section.C. Overall Width
Measured from handle end to handle end in inchesD. Height
High / low measured in millimeters
FLEXX HANDLEBAR NOTATIONS AND DEFINITIONS
- Our Quad Bars are 31 inches wide, while our Moto Bars are 32 inches wide.
- All Quad bends offer 9” of handle room, over an inch more than a traditional bar.
- All Moto bends offer 9.5” of handle room, over 1.5 inches more than a traditional bar.
- All Flexx Handlebars require a 1 1/8" bar clamps.
Handlebar Bend Options
12 Degree Bends (A) Sweep (C) Width (D) Height Part Number 12° Quad Low 12° / 54mm 31in 92mm FL-1001-12-31 12° Quad High 12° / 54mm 31in 116mm FL-1003-12-31 12° Moto 12° / 54mm 32in 92mm FL-1001-12-32 12° Moto High 12° / 54mm 32in 116mm FL-1003-12-32
14 Degree Bends (A) Sweep (C) Width (D) Height Part Number 14° Quad Low 14° / 57mm 31in 92mm FL-1001-14-31 14° Quad High 14° / 57mm 31in 116mm FL-1003-14-31 14° Moto 14° / 57mm 32in 92mm FL-1001-14-32 14° Moto High 14° / 57mm 32in 116mm FL-1003-14-32
15 Degree Bends (A) Sweep (C) Width (D) Height Part Number 15° Quad Low 15° / 62mm 31in 92mm FL-1001-15-31 15° Quad High 15° / 62mm 31in 116mm FL-1003-15-31 15° Moto 15° / 62mm 32in 92mm FL-1001-15-32 15° Moto High 15° / 62mm 32in 116mm FL-1003-15-32
19 Degree Bends (A) Sweep (C) Width (D) Height Part Number 19° Quad Low 19° / 80mm 31in 92mm FL-1001-19-31 19° Quad High 19° / 80mm 31in 116mm FL-1003-19-31 OEM CROSS REFERENCE
Manufacturer / Model Comparable Flexx Handlebar Notes Apex Pro MXR 50 15° Mini Hi 2010 and older require an oversize mount Apex Pro MXR 70 15° Quad 2010 and older require an oversize mount Apex Pro MXR 85 15° Quad 2010 and older require an oversize mount Apex Pro MXR 90 15° Quad 2010 and older require an oversize mount Apex Pro MXR 100 15° Quad 2010 and older require an oversize mount Apex 250F 14° Quad Apex 450F 14° Quad Apex Pro Shark 70 15° Quad 2010 and older require an oversize mount Apex Pro Shark 90 15° Quad 2010 and older require an oversize mount Can-am Outlander 400/650/800 15° Quad 2″ Rox Riser Can-am Renegade 15° Quad Can-am DS 450 15° Moto Can-am DS 250 15° Quad 2″ Rox Riser Can-am DS 70/90 X 15° Mini Low 2″ Rox Riser Can-am DS 70/90 X 15° Mini Low 2″ Rox Riser Cobra ECX 50 15° Mini Low Requires oversize mounts Cobra ECX 70 15° Quad Race Requires oversize mounts DRR DRX2 50R 15° Mini Hi Requires oversize mounts DRR DRX2 50 LTD 15° Mini Hi Requires oversize mounts DRR DRX2 70 15° Quad Requires oversize mounts DRR DRX2 90 15° Quad Requires oversize mounts DRR DRX2 90 LTD 15° Quad Requires oversize mounts DRR DRX4 15° Quad Requires oversize mounts DRR DRX 300 15° Quad Low 2″ Rox Riser Honda TRX 450 14°/15° Quad Requires oversize mounts Honda TRX 700 15° Quad 2″ Rox Riser Honda TRX 400 15° Quad 2″ Rox Riser Honda TRX 300 15° Quad Low 2″ Rox Riser Honda TRX 250 15° Quad 2″ Rox Riser Honda TRX 90 15° Mini Low 2″ Rox Riser KTM SX/XC 450/505/525 15° Moto Stock Mounts Kawasaki KFX 450 15° Quad Stock mounts Kawasaki KFX 700 15° Moto High 2″ Rox Riser Kawasaki KFX 90 15° Mini 2″ Rox Riser Kawasaki KFX 50 15° Mini Low 2″ Rox Riser Kawasaki Brute Force 650/750 19° Quad 2″ Rox Riser Pister Pro FXR 90R E-START MINI 12° Quad Requires 1 1/8 bar mounts Pister Pro FXR 125R MINI ATV 12° Quad Requires 1 1/8 bar mounts Pister Pro FXR 150R MINI ATV 12° Quad Requires 1 1/8 bar mounts Polaris Outlaw 450/525 15° Quad Low 2″ Rox Riser Polaris Outlaw 90 15° Quad Low 2″ Rox Riser Polaris Outlaw 50 15° Quad Low 2″ Rox Riser Polaris Sportsman 550/850 19° Quad 2″ Rox Riser Polaris Sportsman 500/800 19° Quad 2″ Rox Riser Polaris Sportsman 300/400 19° Quad 2″ Rox Riser Suzuki LTR 450 15° Quad Low 2″ Rox Riser Suzuki Z400 15° Quad Low 2″ Rox Riser Suzuki Z 250 15° Quad 2″ Rox Riser Suzuki Z 90 15° Mini Low 2″ Rox Riser Yamaha YFZ 450 19° Quad Stock Mounts; YZF prior to 2006 require 1 1/8 bar mounts Yamaha Raptor 700 15° Quad 2″ Rox Riser Yamaha Raptor 250/350 15° Quad 2″ Rox Riser Yamaha Raptor 90 15° Mini 2″ Rox Riser Yamaha Wolverine 450 19° Quad 3″ Rox Riser Yamaha Grizzly 550/700 19° Quad 3″ Rox Riser Yamaha Grizzly 350/450 19° Quad 3″ Rox Riser
