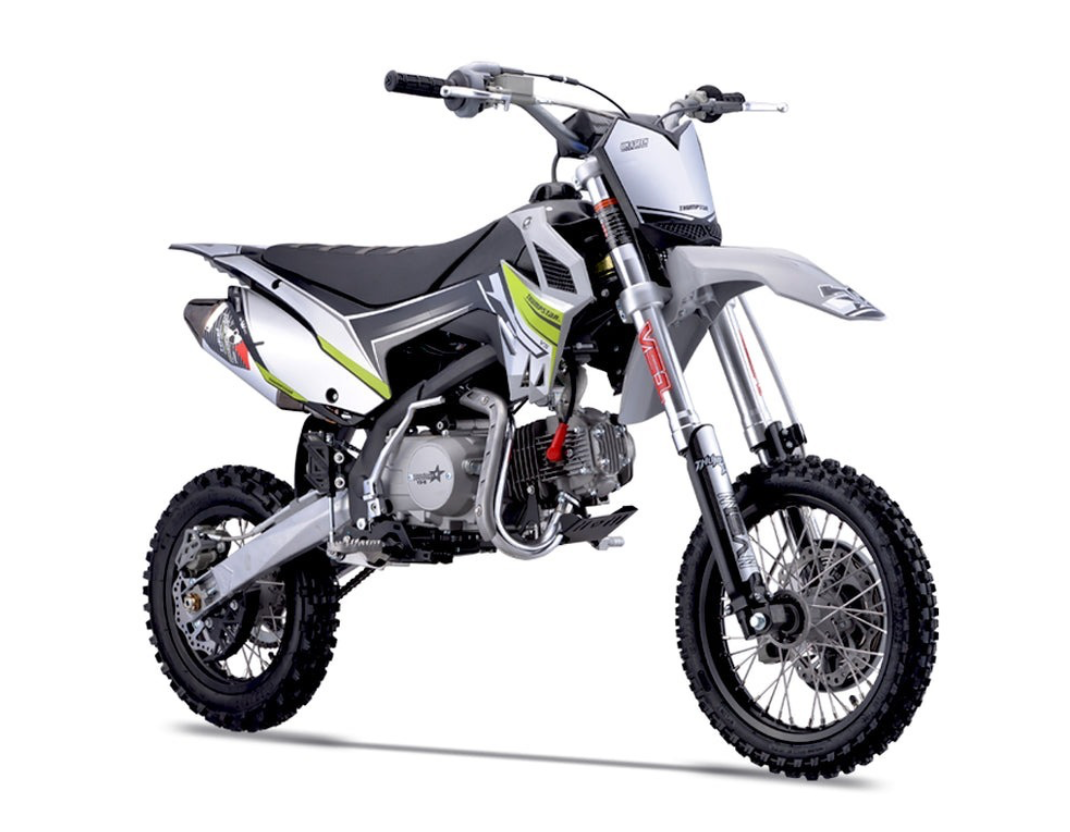

TSX 125
SKU:
$2,999.00
By ZZZ
CONTACT US TO VERIFY AVAILABILITY
Description
| ENGINE & TRANSMISSION | |
| Engine | YX | 4 Stroke |
| CC Rating | 125cc |
| Gearbox | Manual | 4 speed (N1234) |
| Starter | Kick |
| Carburetion | Mikuni VM22 26mm |
| Exhaust | Pipe Bomb DW2 | 38mm | Header Bomb |
| Final Drive | PSC 6 Bolt Sprocket | 428 HD Chain |
| Top Speed | 90kph / 55mph (depending on gearing) |
| SUSPENSION, BRAKES, & WHEELS | |
| Suspension Front | VS1 Inverted Forks | Length 770mm | 45 / 48mm |
| Suspension Rear | VS1 Linkage U Shock | Length Adj 350mm (+10mm) |
| Brakes Front | 220mm Disc | HSK Dual Piston |
| Brakes Rear | 190mm Disc | HSK Single Piston |
| Wheel & Tire Front | 7075 Alloy Rim | 70/100-14 |
| Wheel & Tire Rear | 7075 Alloy Rim w/ Rim Lock | 80 / 100-12 |
| DIMENSIONS & WEIGHT | |
| Wheelbase (axle to axle) | 1260mm | 50" |
| Seat Height | 830mm | 33" |
| Product Weight N.W | G.W | 80 / 90 kg | 176 / 198 lbs |
| Tank Capacity | 3.4 Litres | 0.9 Gallon |
| Product Packing Size | 1420 x 430 x 640mm | 0.40m3 |
