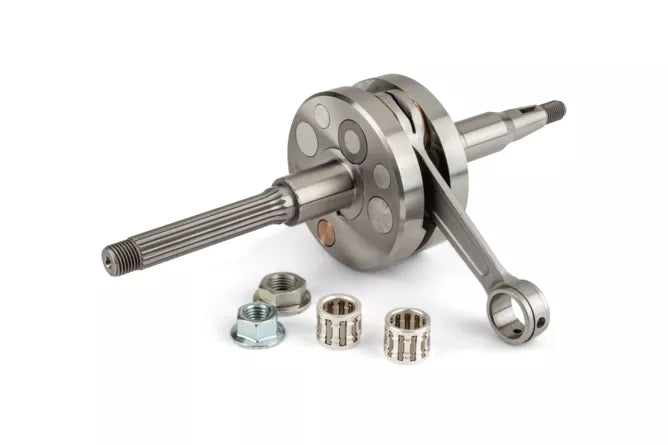

The Stage6 R/T crankshaft was developed as the perfect complement for the Stage6 R/T Big Bore 95cc cylinder, but can of course also be used with other racing cylinders with 90mm connecting rod, e.g. with the 2Fast 94cc, the Bidalot WR 88 or the Malossi Testa Rossa 94.
The crank webs of the Stage6 R/T crankshaft have a larger diameter than the original model. Machining of the crankcase is therefore necessary. The final dimensions of the crankcase after machining should be 76.8 mm (+ 0.2 mm).
When installing, make sure to use a new pair of crankshaft bearings and seals.
TECHNICAL DETAILS FOR STAGE6 R/T CRANKSHAFT MINARELLI SCOOTER:
- High end racing crankshaft
- Stroke: 44 mm
-
Connecting rod length: 90 mm
- Piston pin: 12, 13 and 14 mm
- 1x small end bearing: 12x17x16 mm
- 1x small end bearing: 14x17x17 mm
-
Machining crankcase: 76.8 ± 0.2 mm
- Incl. CVT nut: M12x1.25 mm
-
For Minarelli horizontal
