S6-4516600

Regular price $439.95
/
Shipping calculated at checkout.

This brand and item is often out of stock for long periods of time - please call to verify stock


**** FITMENT - Small Taper Ignition Side ****

FITS: 2FAST - MALOSSI - STAGE6 - ROOST 50/70/90/94/100cc , DRR OEM 50/70cc, APEX DRR OEM 50/70/100cc ***



****DOES NOT FIT - DRR FULL CIRCLE 90/100cc CRANKS - APEX OEM 90cc CRANKS ***



With PVL, we have managed to find a distinguished and competent partner to develop and manufacture our ignition. PVL have supplied their hardware, we have contributed the software, i.e. the two selectable ignition curves, based on years of experience in circuit and drag racing and with dyno runs

  • Digital ignition system
  • Programmable ignition advance for an effective ignition timing even at 20,000 rpm
  • Two ignition curves selectable during operation
  • Inner rotor with low rotational inertia
  • Digital ignition with control unit
  • Small, lightweight casing thanks to SMD-technology
  • Ignition start already at less than 400 rpm
  • Highly effective capacitive discharge (CDI)
  • Constant discharging voltage
  • Lightweight inner rotor
  • Low rotational inertia

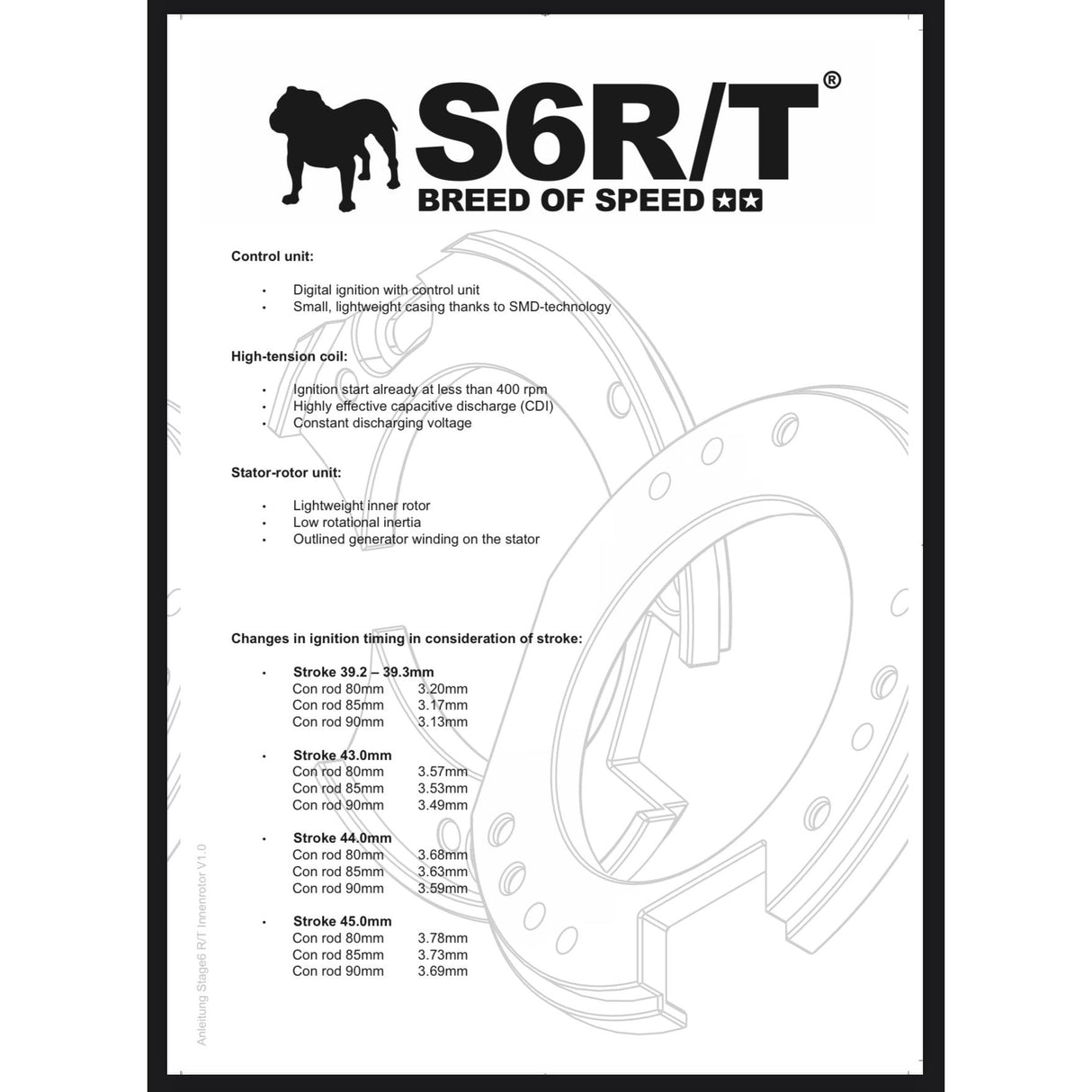

FLYWHEEL SIZE HELP CLICK HERESTROKE 39.2-39.3mm 50-70cc CranksRod 80mm 3.20mm (Stock DRR/Apex)Rod 85mm 3.17mm (Malossi Team 50cc, 70cc Cross,2Fast 70, Polini 70cc)Rod 90mm 3.13mmSTROKE 44mmRod 80mm 3.68mmRod 85mm 3.63mm (Malossi Bi Bore)Rod 90mm 3.59mm (2Fast)STROKE 45Rod 80mm 3.78mmRod 85mm 3.73mm (Stock Apex/DRR)Rod 90mm 3.69mmSTROKE 45.8mmRod 80mm 3.86mmRod 85mm 3.81mmRod 90mm 3.77mm
